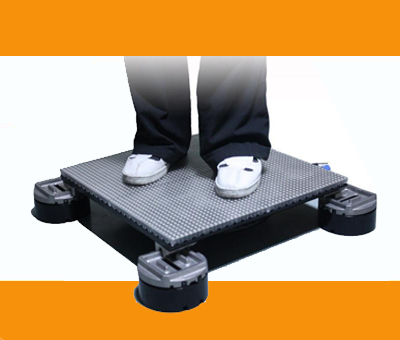

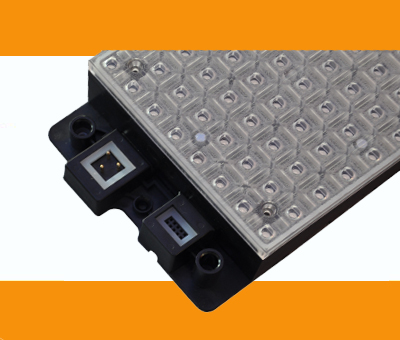

• Marble1 LED Video Floor Module

    First Generation Video Floor Solution

    Pixel: 10mm/16/32
    Size: 256x128mm/320*160mm
    weight: ≤1KG
    IP rating: IP65(F)/IP31(R)
    Leds:...
    Pixel: 10mm/16/32
    Size: 256x128mm/320*160mm
    weight: ≤1KG
    IP rating: IP65(F)/IP31(R)
    Leds: Outdoor SMD5050
    Brightness: ≤4,000nits
    Refresh rates: 300Hz
    Angle: 120°H/V

    Download PDF

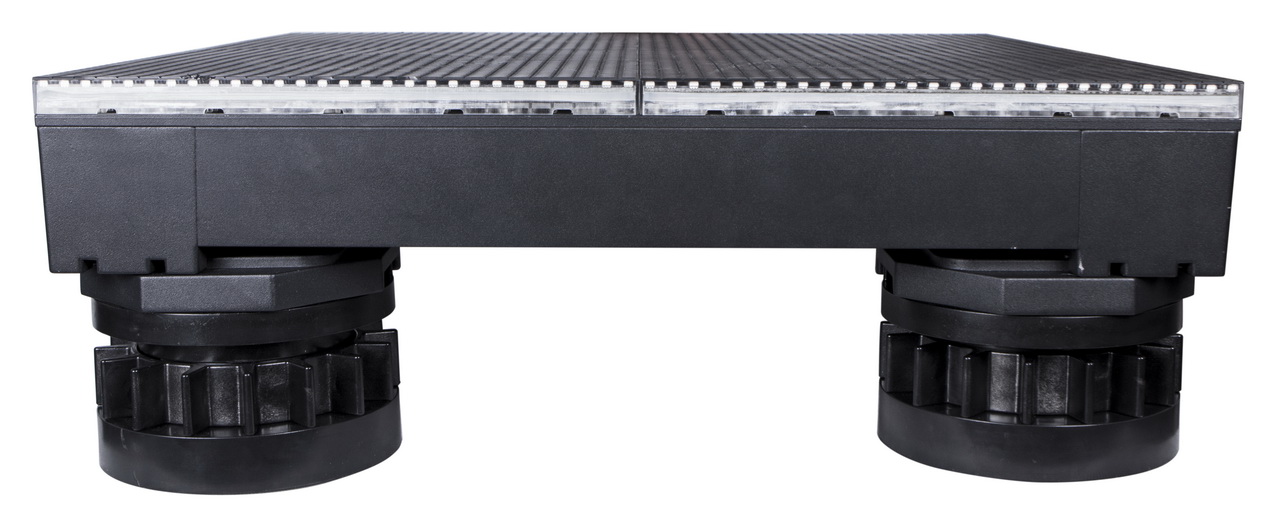

  • Marble2 Versatile LED Video Floor

    Led Wall & Led Floor Solution

    Pixel: 10.41mm/15.63/20.83
    Size: 500x500x75mm
    weight: 13Kg/panel
    IP rating: IP65(F)/IP51(R)
    Leds:...
    Pixel: 10.41mm/15.63/20.83
    Size: 500x500x75mm
    weight: 13Kg/panel
    IP rating: IP65(F)/IP51(R)
    Leds: Outdoor SMD5050
    Brightness: 6,000nits
    Refresh rates: 400-2000Hz
    Angle: 120°H/V

    Download PDF

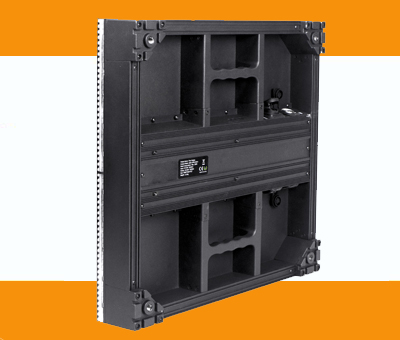

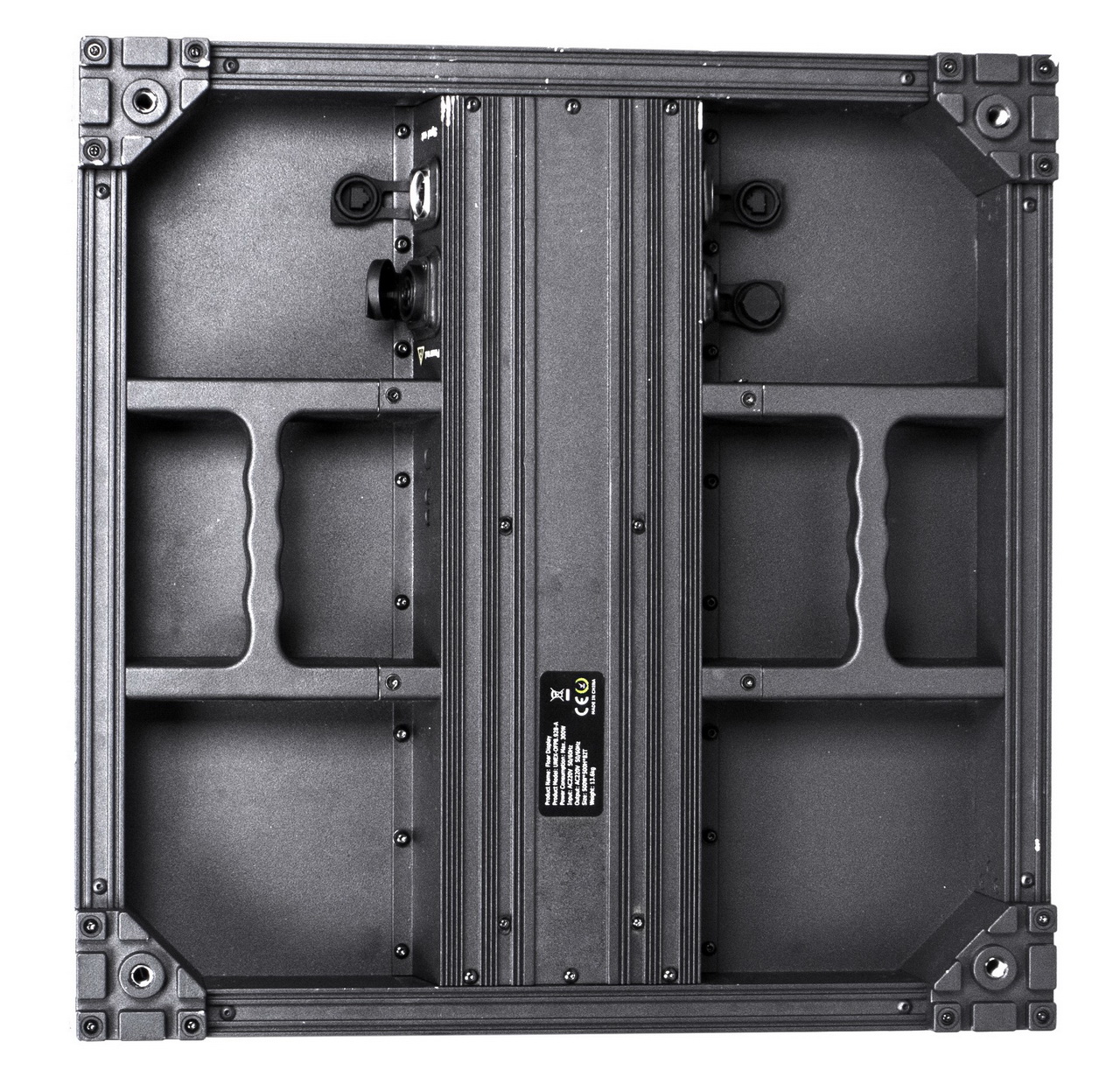

  • Marble3 Versatile LED Video Floor

    RTM8

    Pixel: 8.9mm
    Size: 500x500x80mm
    weight: 13.5Kg/panel
    IP rating: IP65(F)/IP65(R)
    Leds:...
    Pixel: 8.9mm
    Size: 500x500x80mm
    weight: 13.5Kg/panel
    IP rating: IP65(F)/IP65(R)
    Leds: Outdoor SMD3535
    Brightness: 5,500nits
    Refresh rates: 400-2000Hz
    Angle: 110°H/V

    Download PDF

  • Marble3 Versatile LED Video Floor

    RTM10

    Pixel: 10.4mm
    Size: 500x500x80mm
    weight: 13.5Kg/panel
    IP rating: IP65(F)/IP65(R)
    Leds:...
    Pixel: 10.4mm
    Size: 500x500x80mm
    weight: 13.5Kg/panel
    IP rating: IP65(F)/IP65(R)
    Leds: Outdoor SMD3535
    Brightness: 5,500nits
    Refresh rates: 400-2000Hz
    Angle: 110°H/V

    Download PDF

  • Marble3 Versatile LED Video Floor

    RTM17

    Pixel: 17.8mm
    Size: 500x500x80mm
    weight: 13.5Kg/panel
    IP rating: IP65(F)/IP65(R)
    Leds:...
    Pixel: 17.8mm
    Size: 500x500x80mm
    weight: 13.5Kg/panel
    IP rating: IP65(F)/IP65(R)
    Leds: Outdoor SMD3535
    Brightness: 4,000nits
    Refresh rates: 400-2000Hz
    Angle: 110°H/V

    Download PDF

  • Marble3 Versatile LED Video Floor

    RTM20

    Pixel: 20.8mm
    Size: 500x500x80mm
    weight: 13.5Kg/panel
    IP rating: IP65(F)/IP65(R)
    Leds:...
    Pixel: 20.8mm
    Size: 500x500x80mm
    weight: 13.5Kg/panel
    IP rating: IP65(F)/IP65(R)
    Leds: Outdoor SMD3535
    Brightness: 3,500nits
    Refresh rates: 400-2000Hz
    Angle: 110°H/V

    Download PDF
